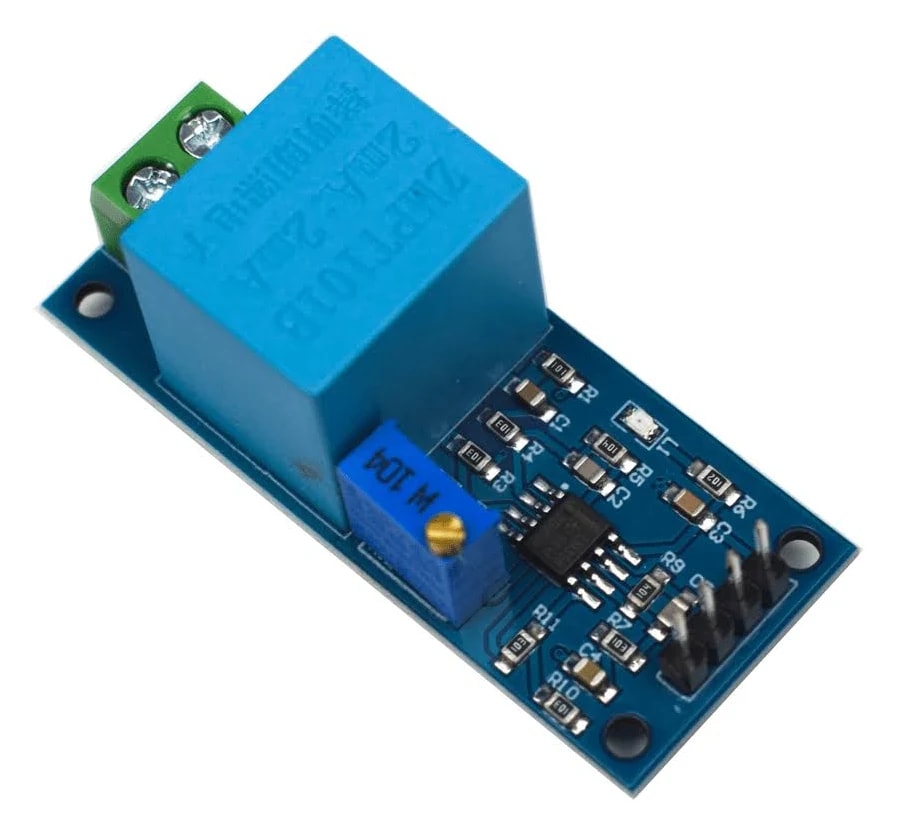

AC Voltage Sensor Module ZMPT101B (Single Phase)

Description

The ZMPT101B AC Voltage Sensor Module is used to measure single-phase AC voltage and provide a proportional analog output signal. It is based on the ZMPT101B precision voltage transformer, which provides electrical isolation between the measured voltage and the output circuit.

The module has three pins: VCC, GND, and OUT. The OUT pin provides an analog signal that can be read using Arduino, ESP32, Raspberry Pi, and other microcontroller platforms.

An onboard potentiometer allows the output sensitivity to be adjusted according to the application requirements. This makes the module suitable for voltage monitoring, energy measurement, home automation, and educational projects.

The ZMPT101B is commonly used in applications that require AC voltage monitoring and measurement.

Features

• Based on ZMPT101B voltage transformer
• Analog output signal
• Adjustable sensitivity using onboard potentiometer
• High accuracy voltage sensing
• Electrical isolation between input and output
• Easy integration with microcontrollers
• Compact and lightweight design

Pin Configuration

Applications

• AC Voltage Monitoring
• Energy Monitoring Systems
• Smart Metering Projects
• Power Measurement Applications
• Home Automation Systems
• Industrial Monitoring
• Educational and DIY Projects

Package Includes

• 1 × AC Voltage Sensor Module ZMPT101B (Single Phase)
